Stainless Steel High Temperature Centrifugal Fan Blower 1 Year Warranty

High temperature centrifugal fan centrifugal blower stainless steel blower special fan brushless cooling fan

The high temperature fan is mainly composed of impeller, casing, air inlet, motor, connector, cooling blade, etc.

1. The impeller adopts multi-wing single inlet centrifugal impeller, made of high quality galvanized sheet or cold rolled steel plate, and the blades are designed according to the aerodynamic principle. The impeller consists of 10 backsloping airfow-type blades, curved-type front disks, and flat rear disks. The material is made of high-quality steel plate with high strength and good durability, and is corrected by strict dynamic and static balance, with good air performance, high efficiency and smooth operation.

2. The air inlet adopts the form of convergent streamline vortex reduction, the airflow loss is small, and the high temperature fan has high working efficiency.

3. The high temperature fan shell and motor are installed and connected with metal casting, the motor shaft head is installed with cooling blades, and the outer wall of the metal casting is set up with inlet and outlet water pipes to cool the metal casting and shaft head to ensure the normal operation of the motor under high temperature.

Key Features

• Impeller diameter: 90~3500mm
• Speed of mainshaft: 560~2900 rpm
• Pressure range: 3000~25425 Pa
• Flow range: 1297~83305 m3/h
• Air Temperature: 20~1000 Celsius degree

• Material: Cast Iron, Carbon Steel, Stainless Steel.

• Efficiency: 80%-90%

Please advise us the USAGE and following Parameter.Our engineering Dept will recommend the most suitable product for you.

Stainless Steel High Temperature Centrifugal Fan

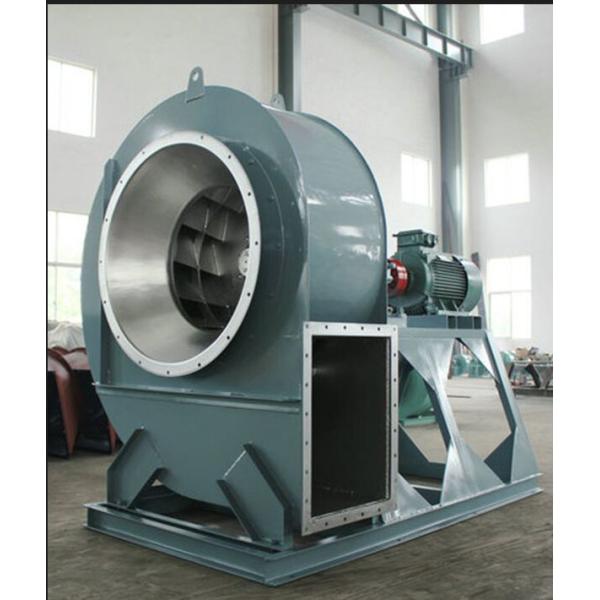

High Temperature Centrifugal Fan Blower

High Temperature Centrifugal Blower

Stainless Steel High Temperature Centrifugal Fan Blower 1 Year Warranty Images
